PP Series Ion Exchange Column

Current page: Home > Ion Exchange Column Ion Exchange Column

PP Series Ion Exchange Column

Ion exchange column purifies water by exchanging the ion of ion exchange resin with some ion of raw water and removing them as a result. The product has good physical and mechanical properties. ...

Order Hotline: +86-571-64139900

Detailed introduction

Ion exchange column purifies water by exchanging the ion of ion exchange resin with some ion of raw water and removing them as a result. The product has good physical and mechanical properties.

Applications

It is widely applied to pure water making, hard water softening, decolorizing and extraction of medicine and food, recovery of important chemical raw materials and waste water treatment in chemical, pharmaceutical, textile, plating etc.

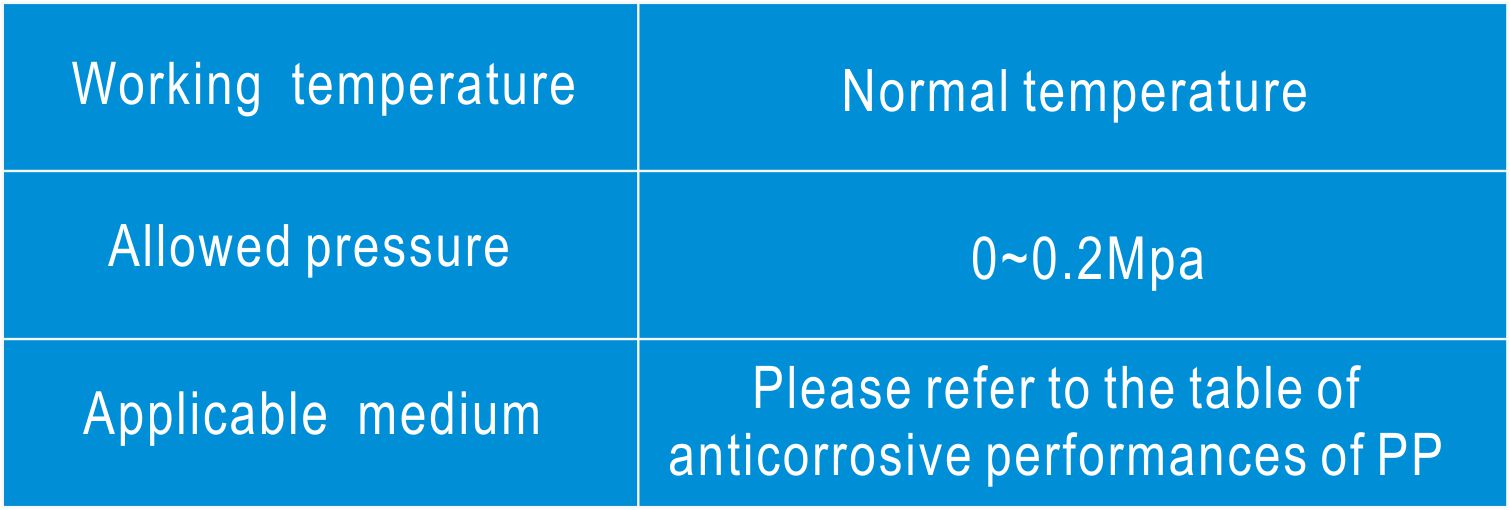

Model Specification

Applicable Scope

Models • performance • parameters

Name	Negative, positive, single sodium bed					Internal regenerative mixed bed
Size	φ250	φ315	φ400	φ500	φ630	φ250	φ315	φ400	φ500	φ630
Designed flow rate (m³/h)	1	1.5	2.5	4	6	2	3	4.5	7	12
Column height	2000	2000	2500	2500	2500	2000	2000	2500	2500	2500
Total height	2330	2460	2930	2990	3080	2330	2460	2930	2990	3080
Water inlet	20	20	25	25	32	25	25	32	40	50
Water outlet	20	20	25	25	32	25	25	32	40	50
Air vent	20	20	20	20	25	25	25	25	32	40
Washing opening	25	25	32	32	40	32	32	40	40	50
Resin inlet	32	30	32	40	40	32	32	32	40	40
