D(3)71X-10 Series RPP Butterfly Valve

Current page: Home > Valve Valve

D(3)71X-10 Series RPP Butterfly Valve

Order Hotline: +86-571-64139900

Detailed introduction

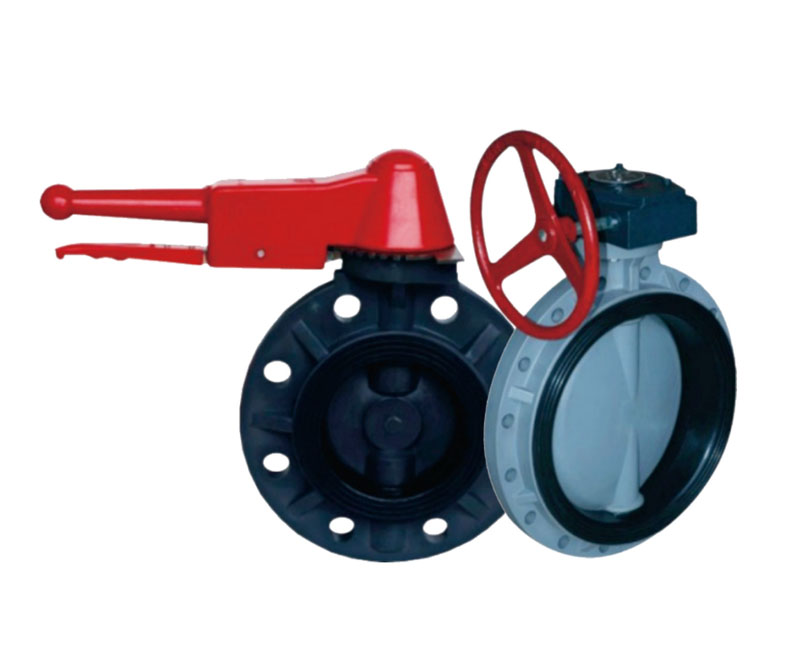

The butterfly valve is opened and controlled by the butterfly plate which rotates with valve rod to adjust the flow rate. All parts contacting medium of the butterfly valve, including valve body, butterfly plate and valve rod, are wrapped by fluoroplastic. The valve has such features as corrosion resistance, small size, light weight, swift opening and close and easy installation.

Product Show

Models • performance • parameters

Size of RPP Scroll Wheelhouse Style Butterfly Valve

DN	D₁	D₂				D₃	L₁	H	H₁	H₂	N-Φ	Pressure (Mpa)	Weight (kg)
DN	D₁	HG	JIS	DIN	ANSI	D₃	L₁	H	H₁	H₂	N-Φ	Pressure (Mpa)	FRPP	CPVC	PVDF
125	131	210	210	210	216	250	300	62	163	93	8-18	0.5	4.8	5.4	5.7
150	153	240	240	240	240	285	300	67	176	93	8-22	0.5	5.5	6.2	6.5
200	204	295	290	295	298	340	180	85	210	93	12-22	0.4	19	21	22
250	255	350	355	350	362	395	180	105	240	93	12-22	0.3	28	30	32
300	307	400	400	400	432	445	180	120	270	93	12-22	0.3	34	36	39
350	358	460	445	460	476	505	180	130	300	93	16-22	0.3	52	56	59
400	389	515	510	515	540	580	240	140	350	108	16-22	0.3	78	84	89
450	446	565	565	565	578	615	240	152	370	108	20-26	0.2	76	81	84
500	494	620	620	620	635	670	260	155	400	108	20-26	0.2	84	90	96
600	590	725	730	725	750	780	260	160	460	108	20-30	0.2	105	108	112
700	670	840	840	840	--	928	402	210	590	120	20-33	0.2	--	--	--
800	770	950	950	950	--	1034	402	240	620	120	24-33	0.2	--	--	--
900	870	1050	1050	1050	1085	1168	402	240	705	120	24-33	0.2	--	--	--
1000	970	1160	1160	1160	--	1262	560	300	750	120	24-36	0.2	--	--	--

Size of RPP Handle Style Butterfly Valve

DN	D₁	D₂				D₃	L₁	H	H₁	H₂	N-Φ	Pressure (Mpa)	Weight (kg)
DN	D₁	HG	JIS	DIN	ANSI	D₃	L₁	H	H₁	H₂	N-Φ	Pressure (Mpa)	FRPP	CPVC	PVDF
25	35	85	90	85	80	125	185	37	72	60	4-17	0.7	1	1	1.1
32	35	100				125	185	37	72	60	4-17	0.7	1	1	1.1
40	47	110	105	110	98.5	150	200	38	86	70	4-18	0.7	1.3	1.3	1.5
50	56	125	120	125	120	160	200	40	88	70	4-18	0.7	1.5	1.5	1.6
65	71	145	145	145	140	185	220	45	100	70	4-18	0.7	1.8	1.8	2
80	85	160	150	160	152	195	280	46	105	85	8-18	0.7	2.5	2.5	2.7
100	105	180	175	180	190	215	280	55	118	85	8-18	0.6	4.4	4.4	4.8
125	131	210	210	210	216	250	300	62	163	93	8-18	0.5	5.2	5.2	5.7
150	153	240	240	240	240	285	300	67	176	93	8-22	0.5	6.1	6.1	6.5
