Current page: Home > Magnetic Pump Magnetic Pump

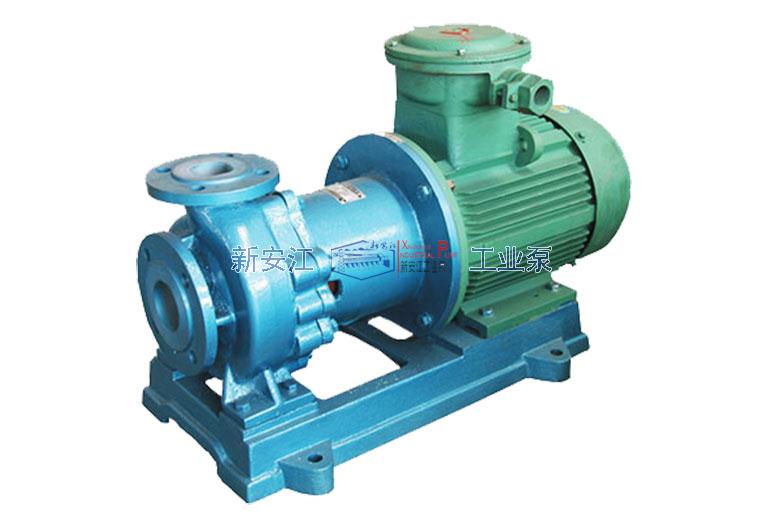

IMD/F Series Fluoro-plastic Magnetic Pump
IMD fluoro-plastic magnetic drive pump has no shaft seal, uses magnetic coupling for indirect drive and therefore avoids any leak. The spacer sleeve made of new material has remarkable mechanical propertie...IMD fluoro-plastic magnetic drive pump has no shaft seal, uses magnetic coupling for indirect drive and therefore avoids any leak. The spacer sleeve made of new material has remarkable mechanical properties and avoids magnetic eddy flow that ordinary magnetic pumps have.
Thanks to the special back pull-out structure of IMD fluoroplastic magnetic pump, only one operator is needed to carry out internal inspection and part replacement without dismantling the pipes, which is very favorable for daily service and maintenance.
The pump is suitable for conveying caustic, flammable, explosive, toxic and volatile chemical media. Applicable temperature: -20°C~80°C. No idle running is allowed. (It is strictly prohibited to transport containing particles and the crystallization of the liquid)
Model Specification
.png)
Structural Representation
Performance Diagram
|
Model |
Flow |
Lift |
Net positive |
Rate of |
Inlet |
Outlet |
Power |
Weight |
|
IMD40-25-130F |
6 |
20 |
3.0 |
2900 |
40 |
25 |
3 |
85 |
|
IMD40-25-140F |
6 |
26 |
3.0 |
2900 |
40 |
25 |
3 |
85 |
|
IMD40-25-150F |
6 |
30 |
3.0 |
2900 |
40 |
25 |
3 |
85 |
|
IMD40-25-160F |
6 |
34 |
3.0 |
2900 |
40 |
25 |
3 |
85 |
|
IMD40-25-165F |
6 |
36 |
3.0 |
2900 |
40 |
25 |
3 |
85 |
|
IMD40-25-170F |
6 |
39 |
3.0 |
2900 |
40 |
25 |
4 |
90 |
|
IMD40-25-185F |
1 |
39 |
3.0 |
2900 |
40 |
25 |
3 |
85 |
|
IMD50-32-160F |
12.5 |
32 |
3.5 |
2900 |
50 |
32 |
4 |
170 |
|
IMD50-32-200F |
12.5 |
50 |
3.5 |
2900 |
50 |
32 |
7.5 |
170 |
|
IMD50-32-195F |
7 |
50 |
3.5 |
2900 |
50 |
32 |
7.5 |
170 |
|
IMD50-40-140F |
15 |
26 |
3.5 |
2900 |
50 |
40 |
5.5 |
140 |
|
IMD50-40-150F |
15 |
30 |
3.5 |
2900 |
50 |
40 |
5.5 |
140 |
|
IMD50-40-160F |
15 |
36 |
3.5 |
2900 |
50 |
40 |
5.5 |
140 |
|
IMD50-40-165F |
15 |
39 |
3.5 |
2900 |
50 |
40 |
5.5 |
140 |
|
IMD65-50-160F |
25 |
32 |
4.0 |
2900 |
65 |
50 |
7.5 |
145 |
|
IMD65-50-120F |
30 |
15 |
4.0 |
2900 |
65 |
50 |
5.5 |
135 |
|
IMD65-50-130F |
30 |
19 |
4.0 |
2900 |
65 |
50 |
5.5 |
135 |
|
IMD65-50-165F |
30 |
33 |
4.0 |
2900 |
65 |
50 |
7.5 |
145 |
|
IMD65-40-200F |
25 |
50 |
4.0 |
2900 |
65 |
40 |
11 |
300 |
|
IMD80-50-200F |
50 |
50 |
4.0 |
2900 |
80 |
50 |
18.5 |
335 |
|
IMD80-65-160F |
50 |
32 |
4.0 |
2900 |
80 |
65 |
11 |
300 |
|
IMD100-80-160F |
100 |
32 |
5.0 |
2900 |
100 |
80 |
18.5 |
435 |
